Design Series No. 010
| A. AREA CALCULATION |
|
GROUND FLOOR
|
|
Master's Bedroom |
11.55 M2 |
|
Toilet & Bath @ Master's Bedroom |
3.75 M2 |
|
Living Room |
13.00 M2 |
|
Kitchen |
6.00 M2 |
|
Dining |
10.50 M2 |
|
Bedroom - 01 |
8.75 M2 |
|
Common T & B |
3.00 M2 |
|
TOTAL
|
56.55 M2 or 608.4 Sq. ft. |

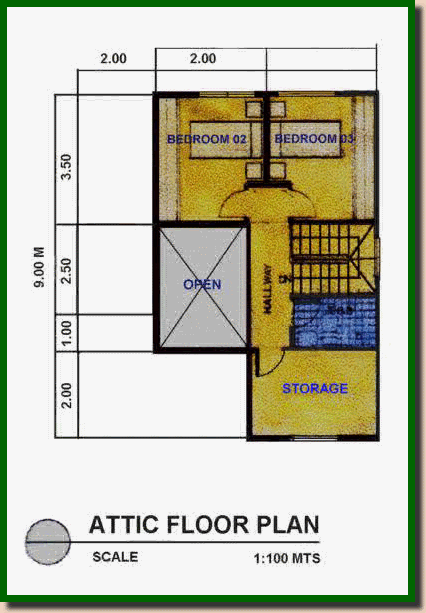

| ATTIC FLOOR |
|
Storage |
8.75 M2 |
|
Common T & B |
3.45 M2 |
|
Hallway |
5.40 M2 |
|
Stairway |
4.60 M2 |
|
Bedroom - 02 |
9 90 M2 |
|
Bedroom - 03 |
9.90 M2 |
|
TOTAL
|
42.00 M2 or 451.8 Sq.Ft. |
| OUTDOOR AREA |
|
Laundry Area |
5.25 M2 |
|
Lanai |
8.00 M2 |
|
Foyer |
3.00 M2 |
|
Carport / Driveway |
18.60 M2 |
|
TOTAL
|
34.85 M2 or 374.9 Sq.Ft. |
| B. SUMMARY: |
|
Total Floor Area @ Ground Floor |
56.55 M2 or 608.4 Sq.Ft. |
|
Total Floor Area @ Attic Floor |
42.00 M2 or 451.8 Sq.Ft. |
|
TOTAL FLOOR AREA
|
98.55 M2 or 1060.2 Sq.Ft. |
| C. DESIGN SUITABILITY: |
| A. This design is good for lots with a minimum area of 167 Sqm.
|
| D. GENERAL CONSTRUCTION COST |
|
A Structural only |
Php 1,000,000.00 |
|
B. Semi - finished |
Php. I,200,000.00 |
| C. Fully finished |
Php. 1,450,000.00 |
| NOTE: Cost of construction are based on the cost parameter as of July
2004 |
|
