A. AREA CALCULATION |
|
|

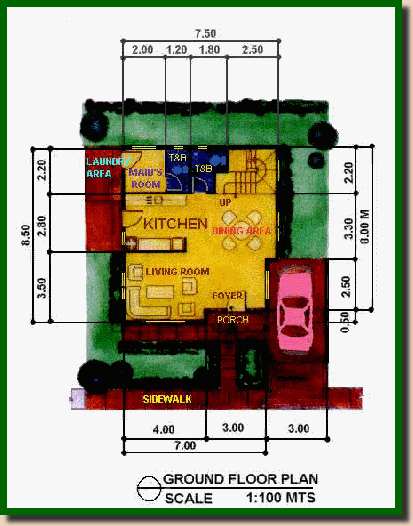

01. GROUND FLOOR |
|
| Carport | 15.00 M2 |
| Foyer | 7.50 M2 |
| Toilet & Bath | 2.70 M2 |
| Living room | 14.00 M2 |
| Dining room | 14.08 M2 |
| Kitchen | 8.40 M2 |
| Maid's room | 4.40 M2 |
| T & B @ maids room | 2.64 M2 |
| Stairs | 5.88 M2 |
|
TOTAL |
74.60 M2 or 802.2 Sq. Ft |
|

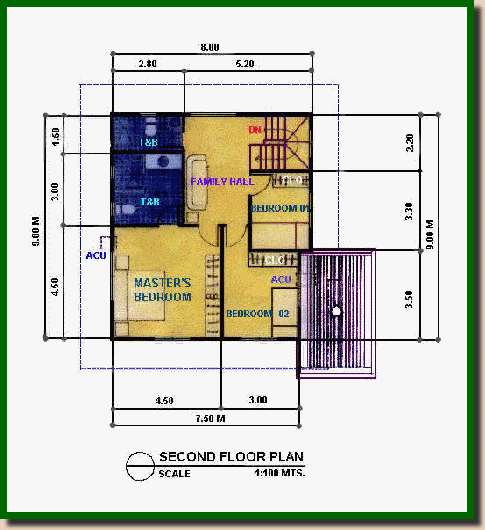

02. SECOND FLOOR |
|
| Toilet & Bath | 3.45 M2 |
| Family Hall | 11.25 M2 |
| Bedroom -1 | 10.00 M2 |
| Bed room - 2 | 7.92 M2 |
| Master's Bedroom | 16.00 M2 |
| T&B @ Master's Bedroom | 6.90 M2 |
|
TOTAL |
55.52 M2 or 597.3 Sq.Ft. |
| B. SUMMARY: | |
| Total Floor Area @ Ground Floor | 74.60 M2 or 802.2 Sq. Ft |
| Total Floor Area @ Second Floor | 55.52 M2 or 597.3 Sq. Ft. |
|
TOTAL FLOOR AREA |
130.12 M2 or 1399.5 Sq. Ft. |
| C. DESIGN SUITABILITY: | |
| A. This design is good for lots with a minimum area of 160 Sqm. | |
| D. GENERAL CONSTRUCTION COST | |
| A. Structural only | Php 1,305,000.00 |
| B. Semi -finished | Php 1,460,000.00 |
| C. Finished | Php 1,660,000.00 |
| NOTE: Cost of construction are based on the cost parameter as of July 2004 | |
|
|
