| A. AREA CALCULATION | |

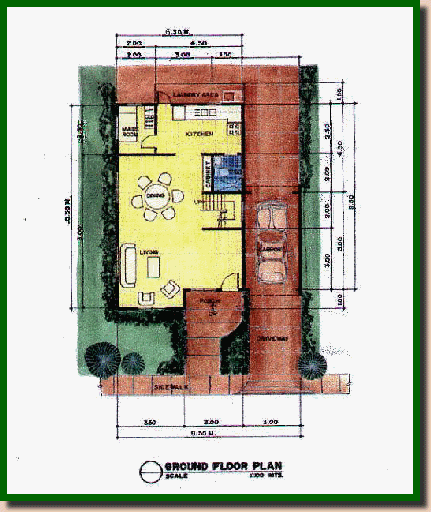

| 01. GROUND FLOOR | |
| Carport | 15.00 M2 |
| Porch | 3.00 M2 |
| Living room | 23.30 M2 |
| Dining room | 18.00 M2 |
| Stairway | 4.00 M2 |
| Toilet & Bath | 3.00 M2 |
| Kitchen | 11.25 M2 |
| Maid's room | 5.00 M2 |
| Laundry | 4.50 M2 |
|
TOTAL |
87.05 M2 or 936.5 Sq.Ft |
|

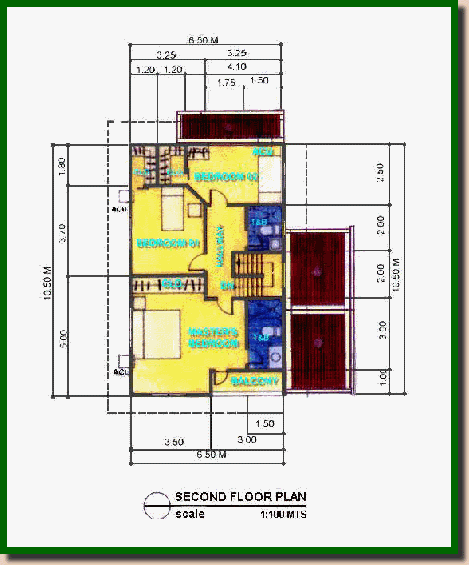

02. SECOND FLOOR |
|
| Balcony | 3.00 M2 |
| Master's Bedroom | 22.00 M2 |
| T& 8 @ Master's Bedroom | 4.50 M2 |
| Hallway | 5.40 M2 |
| Toilet & Bath | 3.00 M2 |
| Bedroom - 1 | 11.52 M2 |
| W.I.C. @ Bedroom.-1 | 1.98 M2 |
| Bedroom - 2 | 9.68 M2 |
|
TOTAL |
61.08 M2 or 657.1 Sq.Ft. |
| B. SUMMARY: | |
| Total Floor Area @ Ground Floor | 87.05 M2 or 936.5 Sq. Ft. |
| Total Flour Area @ Second Floor | 61.08 M2 or 657.1 Sq. Ft. |
|
TOTAL FLOOR AREA |
148.13 M2 or 1593.6 Sq. Ft. |
| C. DESIGN SUITABILITY: | |
| A.This design is good for lots with a minimum area of 240 Sqm. | |
| D. GENERAL CONSTRUCTION COST | |
| A. Structural only | Php 1,505,000.00 |
| B. Semi - Finished | Php 1,660,000.00 |
| C. Finished | Php 1,880,000.00 |
| NOTE: Cost of construction are based on the cost parameter as of July 2004 | |
|
| |
